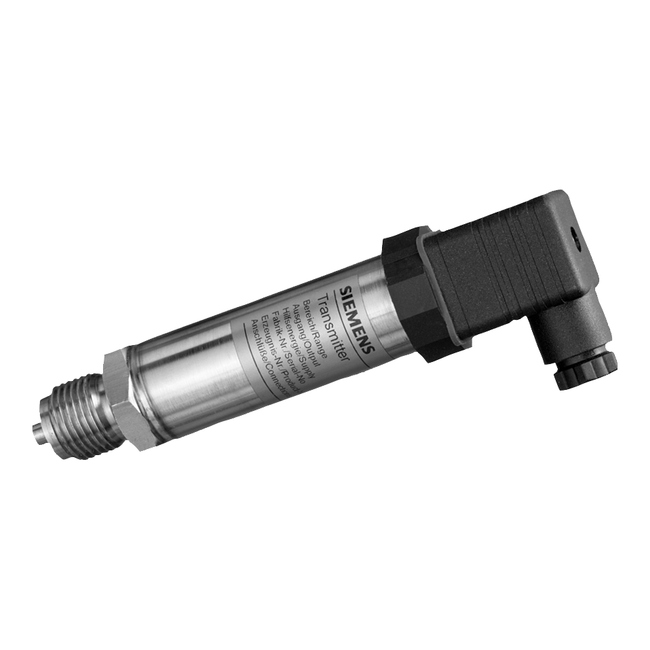

7MF15643CA001AA1 7MF1564-3CA00-1AA1 Siemens

MEASURING TRANSDUCER SITRANS P, FOR PRESSURE AND ABSOLUTE PRESSURE SERIES Z Measuring range for relative pressure: 0 to 10 bar g (0 to 145 psi g), max. perm. operating pressure 20 bar g (290 psi g) OUTPUT SIGNAL: 4 TO 20 mA TWO-WIRE SYSTEM auxiliary power: 10 TO 36 V DC ELECTRICAL CONNECTION: CONNECTOR according to DIN 43650, FORM A PROCESS CONNECTION: G1/2 EXTERNAL ACCORDING TO EN837-1 SEALING MATERIAL BETWEEN SENSOR AND HOUSING: VITON (STANDARD) STANDARD VERSION
