SCHNEIDER ELECTRIC TSXAEY414C industrial automation component

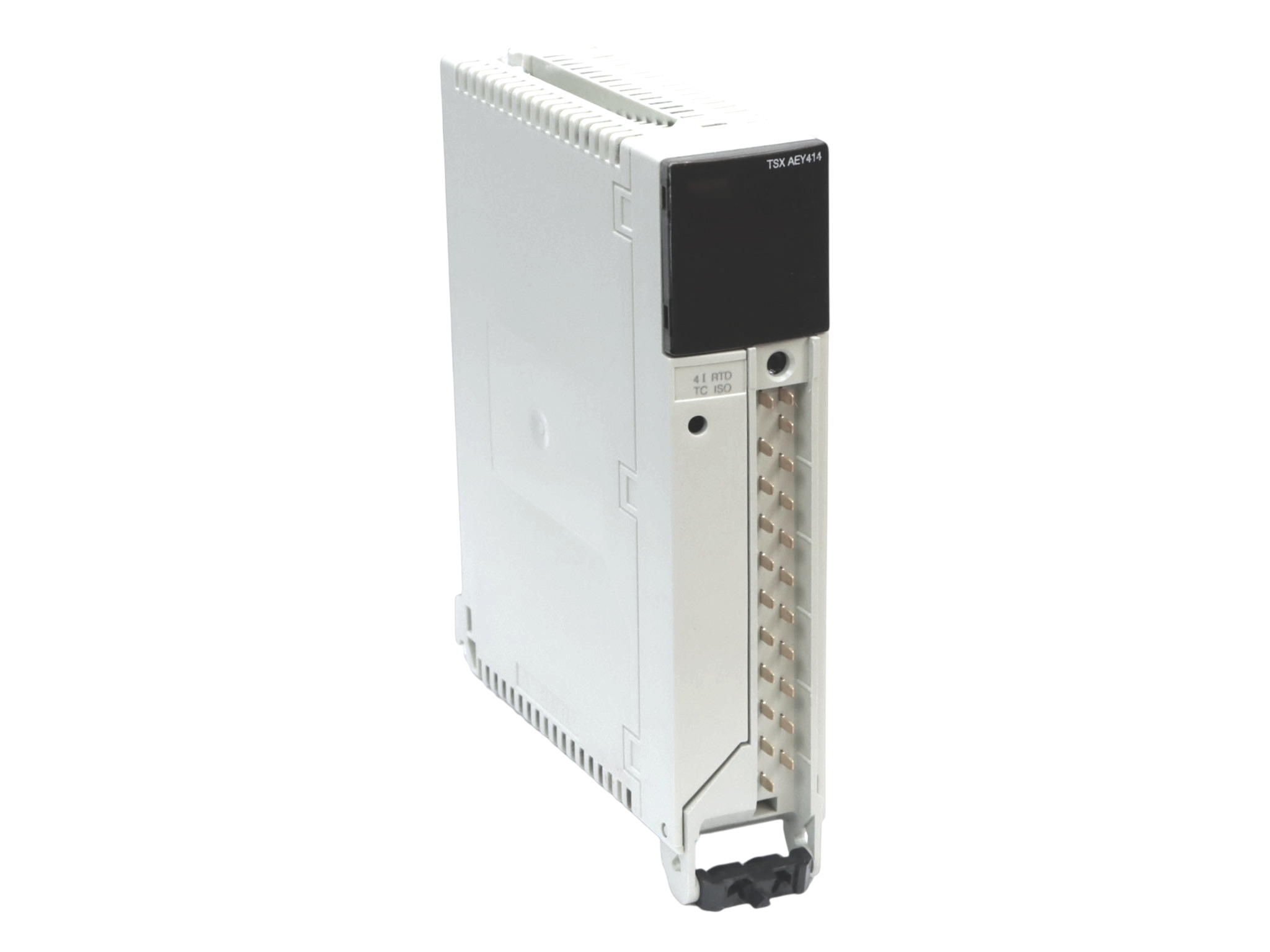

Modicon Premium universal analog input module with four channels and Humiseal 1A33 conformal coating for additional protection of the electronic circuitry. The TSXAEY414C brings temperature and electrical measurements into a system through a single module supporting thermocouple types B, E, J, K, L, N, R, S, T and U. It also accepts Pt100, Pt1000 and Ni1000 temperature probes with two-wire or four-wire connections. Supported electrical ranges are 4 to 20 mA, 0 to 5 V, 1 to 5 V, 0 to 10 V, minus 5 to plus 5 V, minus 10 to plus 10 V and minus 13 to plus 63 mV. Resistance inputs cover 0 to 400 ohms and 0 to 3850 ohms. Analog-to-digital conversion provides 16-bit resolution with a nominal read cycle of 550 ms. Isolation is rated at 2830 Vrms between channels and 1780 Vrms between the channels and both the rack bus and ground. Field wiring connects through a screw terminal block. The standard-format module draws 660 mA from the rack's 5 V DC supply and provides IP20 protection. Operating temperature is 0 to plus 60 degrees Celsius, with relative humidity from 10 to 95 percent without condensation. Storage temperature is minus 25 to plus 70 degrees Celsius.
