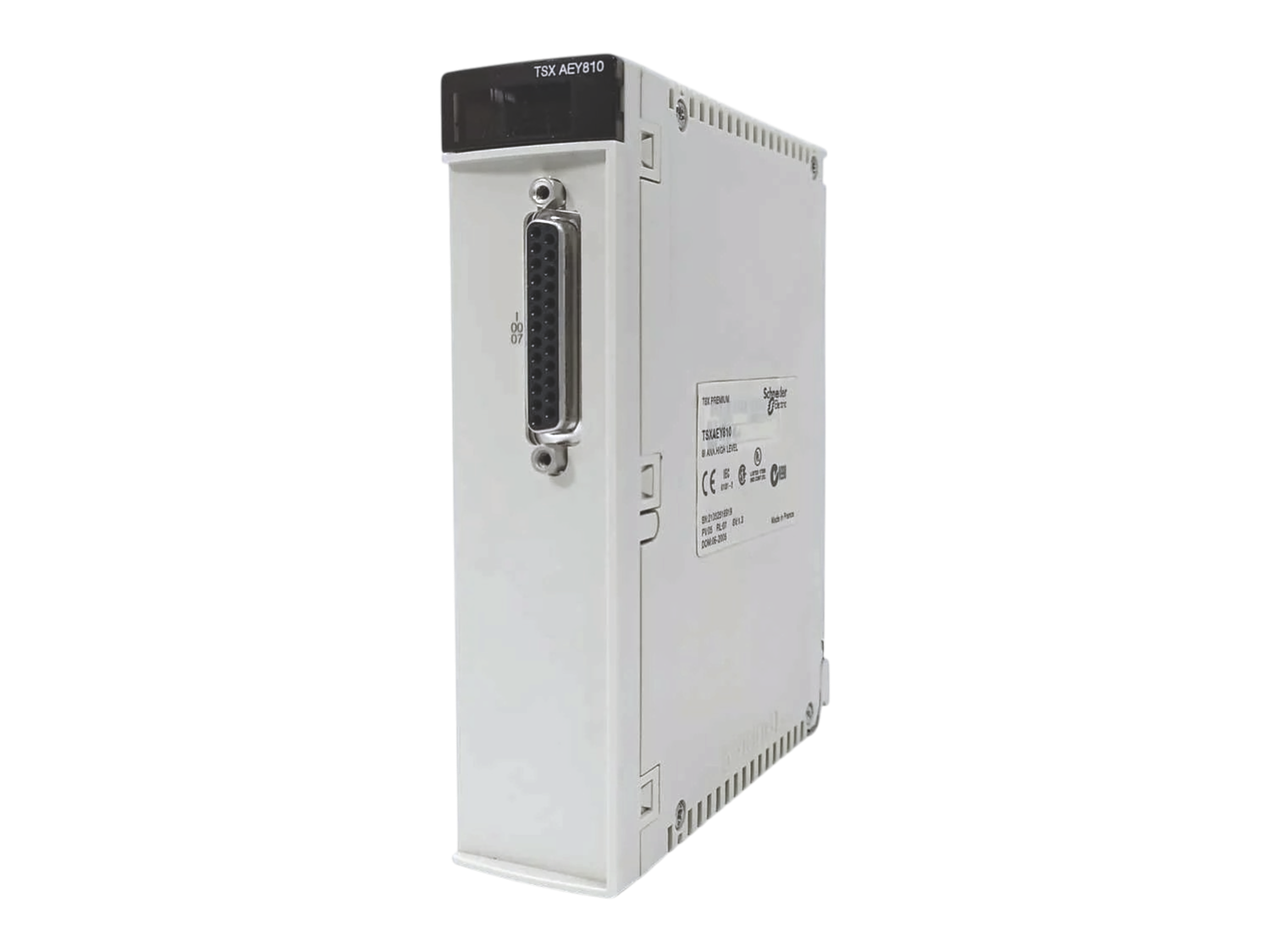

SCHNEIDER ELECTRIC TSXAEY810 industrial automation component

Modicon Premium analog input module with eight isolated channels for acquiring voltage and current signals from industrial sensors and transmitters. The TSXAEY810 accepts 0–20 mA, 4–20 mA, ±10 V, 0–10 V, 0–5 V and 1–5 V signals, with 16-bit analog-to-digital conversion for process measurement and control applications. Its nominal acquisition cycle is 29.7 ms; fast acquisition uses a cycle of 3.3 ms plus 3.3 ms per enabled channel. Electrical isolation is rated at 1,000 Vrms between the inputs and the bus and between the inputs and ground, with a specified channel-to-channel isolation of ±200 V. Field wiring connects through a 25-pin SUB-D connector. The standard-format module draws 475 mA from the rack’s 5 V DC supply and incorporates input overvoltage protection. It has an IP20 protection rating, operates from 0 to +60°C and supports relative humidity from 10% to 95% without condensation. Storage temperature is −25 to +70°C, and the net module weight is 0.33 kg.
